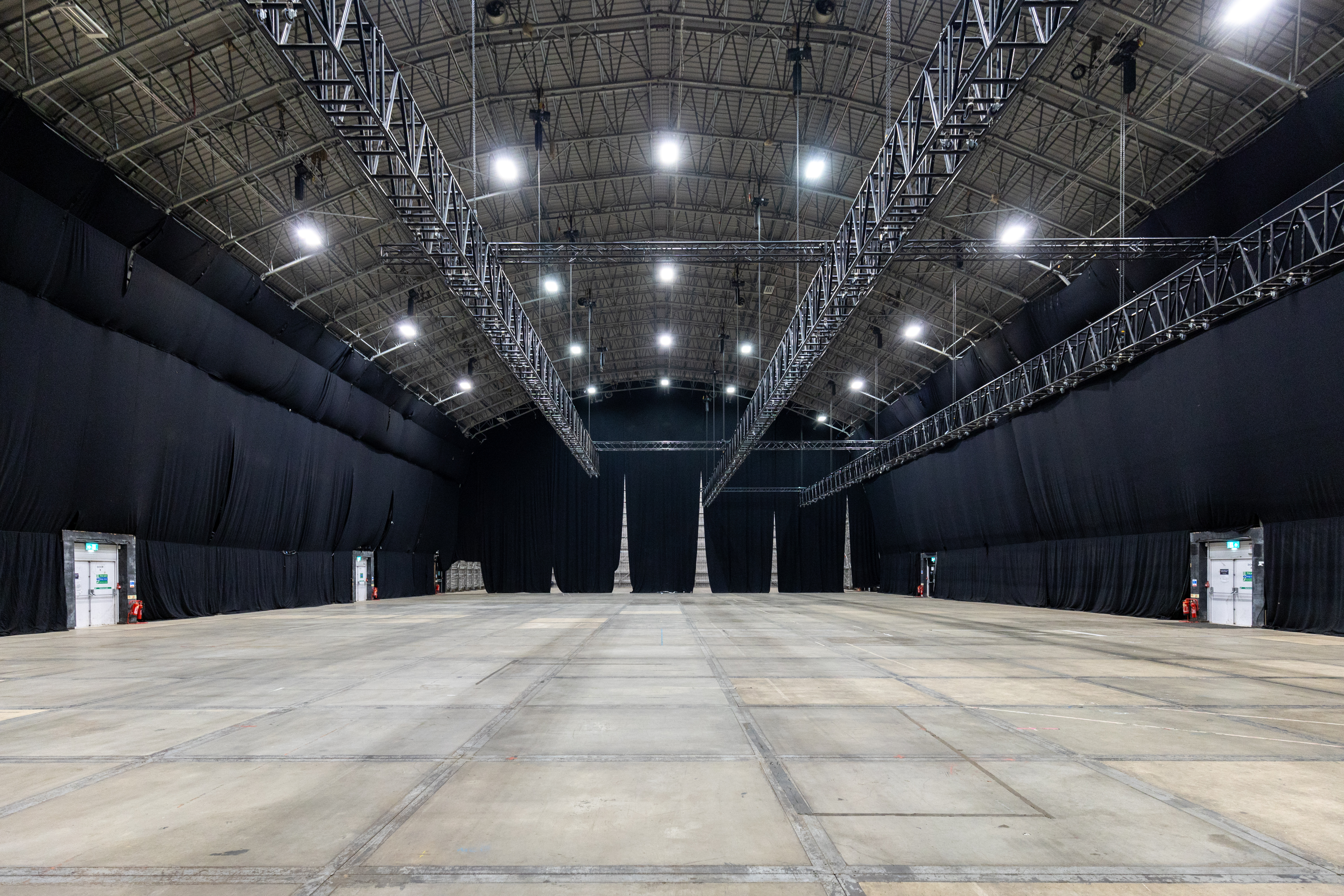

Stage E
23,157ft²
Studio space
55ft
Height
1.25 MW
Power Supply
Specifications
Dimensions
| Height | 55 ft | 16.8 m |
| Width | 106.3 ft | 32.4 m |
| Length | 217.8 ft | 66.4 m |
Electrics
Mains power: 1.25 MW (metered; charged per kWh)
E-House (rear): 2 × 400 A Powerlock mains circuits; 6 × 400 A Powerlock generator outputs
Studio power: 6 × 400 A Powerlock circuits
Studio distribution: 2 × 125 A three-phase supplies; one with distribution to 2 × 63 A three-phase, 2 × 32 A three-phase, 3 × 32 A single-phase, 6 × 16 A singlephase, 6 × 13 A single-phase
Front of production office: 1 × 400 A Powerlock circuit
Rear of studio: 1 × 400 A Powerlock circuit
Generators: Client-supplied if required (e.g., live broadcasts)
Rigging
High-specification mother truss system (installed by Rigger.co.uk)
Fully load-monitored via Kinesys Digihoist; adjustable to any height in minutes
Designed to minimise work at height / powered access
Rigging support available: planning, weight calculations, CAD plans (design phase & tenancy)
Structure Materials
Concrete floor pad (65.3m x 31.04m)
Internet
Highspeed 1Gb/s Internet Connection
Network access is managed via our preferred supplier, Max WiFi
Bookings and availability
Interested in booking Stage E for your next film or TV production?
Contact us to make a booking or find out more information.
