Sound Stages
5
Sound stages
112,483ft²
Studio space
36 - 55 ft
Studio height
50db
Sliding acoustic stage doors
State-of-the-art sound stages
Bovingdon Airfield Studios is a purpose-built film production facility in Bovingdon, 25 miles north of London. Our state-of-the-art sound stages offer a combined footprint of 92,475ft². Each stage has been built and fitted with world-class acoustic cladding and two large mechanically operated sound proofed dock doors. In addition we have two temporary sound stages increasing our stage space to 157,955ft².
Explore our sound stages
Our state-of-the-art sound stages provide premium space for filmmaking and high-end TV productions.
Stage A
| Height | 36 ft | 11 m |
| Width | 111 ft | 34 m |
| Length | 188 ft | 57.7 m |
Stage B
| Height | 38 ft | 11.3 m |
| Width | 131 ft | 40 m |
| Length | 206 ft | 63 m |
Stage C
| Height | 37 ft | 11.3 m |
| Width | 111 ft | 34 m |
| Length | 188 ft | 57.7 m |
Stage D
| Height | 40 ft | 12.3 m |
| Width | 131 ft | 40 m |
| Length | 206 ft | 63 m |
ITV Studios
| Height | 60 ft | 18.28 m |
| Width | 114 ft | 34.74 m |
| Length | 229 ft | 69.79 m |
Stage Comparison
Stage A
Dimensions
| Height | 36 ft | 11 m |
| Width | 111 ft | 34 m |
| Length | 188 ft | 57.7 m |
Electrics
| Single phase double sockets | 16 x 13 Amp |
| Single phase sockets | 3 x 16 Amp |
| Three phase sockets | 2 x 63 Amp |
| 1 x 125 Amp |
6 x Powerlock
Red light and bell system
Rigging
| REDs with specified weight loading limits: | 16 Running beams |
| 4,500kg maximum per beam | |
| 500kg safe working load per span | |
| Gantry walkways with a Kee Klamp system |
Structure Materials
Concrete floor pad
Full acoustic lining
Access
2 Mechanically operated acoustic 50db roller doors
2 Pedestrian single doors
4 Double fire exit doors
4 Acoustic cable hatches
Fire Detection System
Aspiration fire detection system
HVAC System
HVAC system operated by internal panel to provide heating, cooling and air circulation
Pyro and smoke extraction
Internet
Wifi and UniFi network solution
Stage B
Dimensions
| Height | 38 ft | 11.3 m |
| Width | 131 ft | 40 m |
| Length | 206 ft | 63 m |
Electrics
| Single phase double sockets | 16 x 13 Amp |
| Single phase sockets | 3 x 16 Amp |
| Three phase sockets | 1 x 32 Amp |
| 2 x 63 Amp | |
| 1 x 125 Amp |
6 x Powerlock
Red light and bell system
Rigging
| REDs with specified weight loading limits: | 16 Running beams |
| 4,500kg maximum per beam | |
| 500kg safe working load per span | |
| Gantry walkways with a Kee Klamp system |
Structure Materials
Concrete floor pad
Full acoustic lining
Access
2 Mechanically operated acoustic 50db roller doors
2 Pedestrian single doors
4 Double fire exit doors
5 Acoustic cable hatches
Fire Detection System
Aspiration fire detection system
HVAC System
HVAC system operated by internal panel to provide heating, cooling and air circulation
Pyro and smoke extraction
Internet
Wifi and UniFi network solution
Stage C
Dimensions
| Height | 37 ft | 11.3 m |
| Width | 111 ft | 34 m |
| Length | 188 ft | 57.7 m |
Electrics
| Single phase double sockets | 18 x 13 Amp |
| Single phase sockets | 3 x 16 Amp |
| Three phase sockets | 1 x 125 Amp |
| 2 x 125 Amp |
6 x Powerlock
Red light and bell system
Rigging
| REDs with specified weight loading limits: | 14 Running beams |
| 4,000kg maximum per beam | |
| 500kg safe working load per span | |
| Gantry walkways with a Kee Klamp system |
Structure Materials
Concrete floor pad
Full acoustic lining
Access
2 Mechanically operated acoustic 50db roller doors
2 Pedestrian single doors
4 Double fire exit doors
4 Acoustic cable hatches
Fire Detection System
Aspiration fire detection system
HVAC System
Individual HVAC system operated by internal panel to provide heating, cooling and air circulation
Pyro and smoke extraction
Internet
Wifi and UniFi network solution
Stage D
Dimensions
| Height | 40 ft | 12.3 m |
| Width | 131 ft | 40 m |
| Length | 206 ft | 63 m |
Electrics
| Single phase double sockets | 16 x 13 Amp |
| Single phase sockets | 3 x 16 Amp |
| Three phase sockets | 2 x 63 Amp |
| 1 x 125 Amp |
6 x Powerlock
Red light and bell system
Rigging
| REDs with specified weight loading limits: | 16 Running beams |
| 4,500kg maximum per beam | |
| 500kg safe working load per span | |
| Gantry walkways with a Kee Klamp system |
Structure Materials
Concrete floor pad
Full acoustic lining
Access
2 Mechanically operated acoustic 50db roller doors
2 Pedestrian single doors
4 Double fire exit doors
4 Acoustic cable hatches
Fire Detection System
Aspiration fire detection system
HVAC System
Individual HVAC system operated by internal panel to provide heating, cooling and air circulation
Pyro and smoke extraction
Internet
Wifi and UniFi network solution
ITV Studios

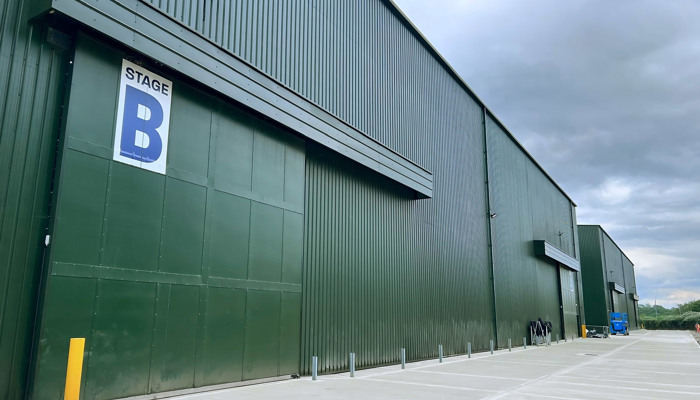

Stage B exterior
Stage set building
Mechanically operated acoustic stage door
Rigging structure
Bookings and availability
Looking for a sound stage for your next film or TV production?
Contact us to find out availability or to make a booking.
